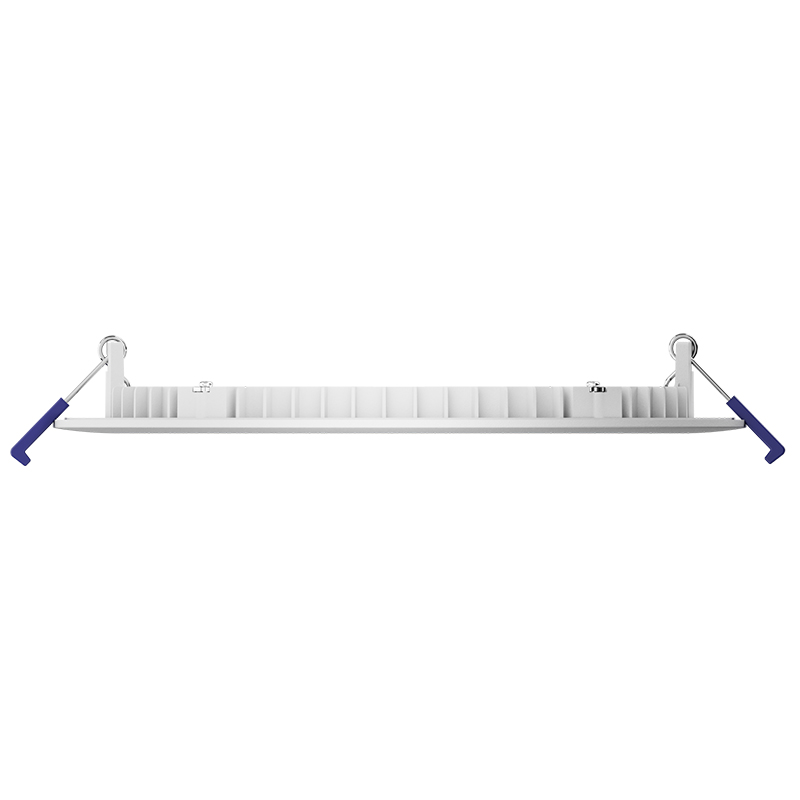

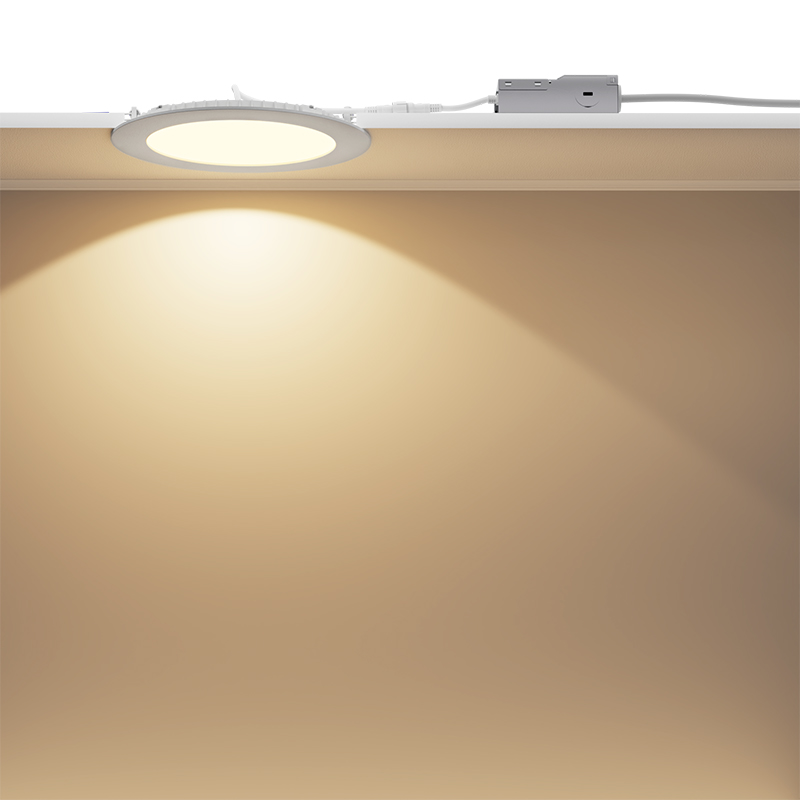

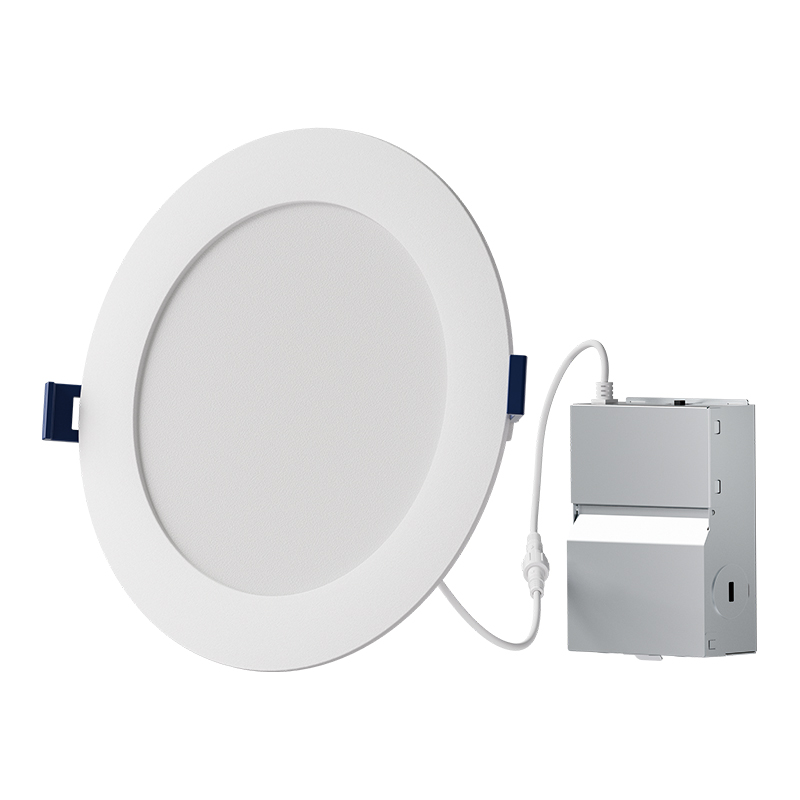

6" Round Smooth Trim Wafer Light
Ultra-Thin Recessed Lighting for Modern Professional Spaces.
Versatile Color Control: 5CCT selectable technology (27K to 50K) allows for on-site ambiance adjustment.
Contractor-Friendly Install: Integrated junction box with quick-connect push wire nuts drastically reduces labor time.
High-Performance Spec: CRI 90 and PF 0.9 ensure superior color rendering and electrical efficiency in wet or dry locations.

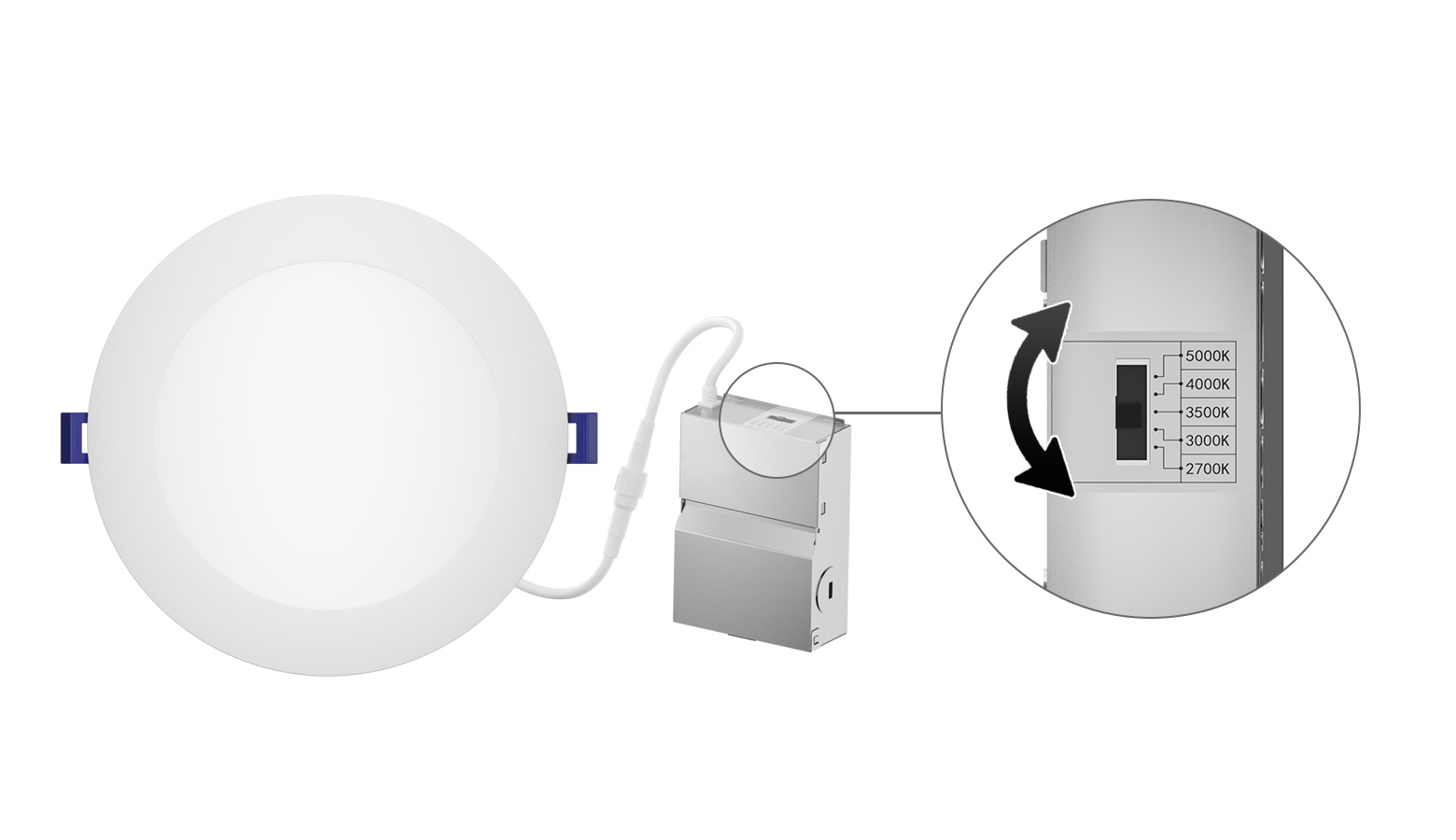

Equipped with an on-fixture toggle switch, this wafer light allows you to choose between five color temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K. This "one-SKU" solution provides ultimate flexibility for different room functions and helps distributors reduce inventory complexity.
Soft, warm light for a relaxed and inviting atmosphere.
A balanced warm tone for comfortable everyday lighting.
A gentle neutral light that feels natural and versatile.
Crisp, neutral illumination for a fresh and focused space.
Bright, cool-white light for maximum clarity and visibility.

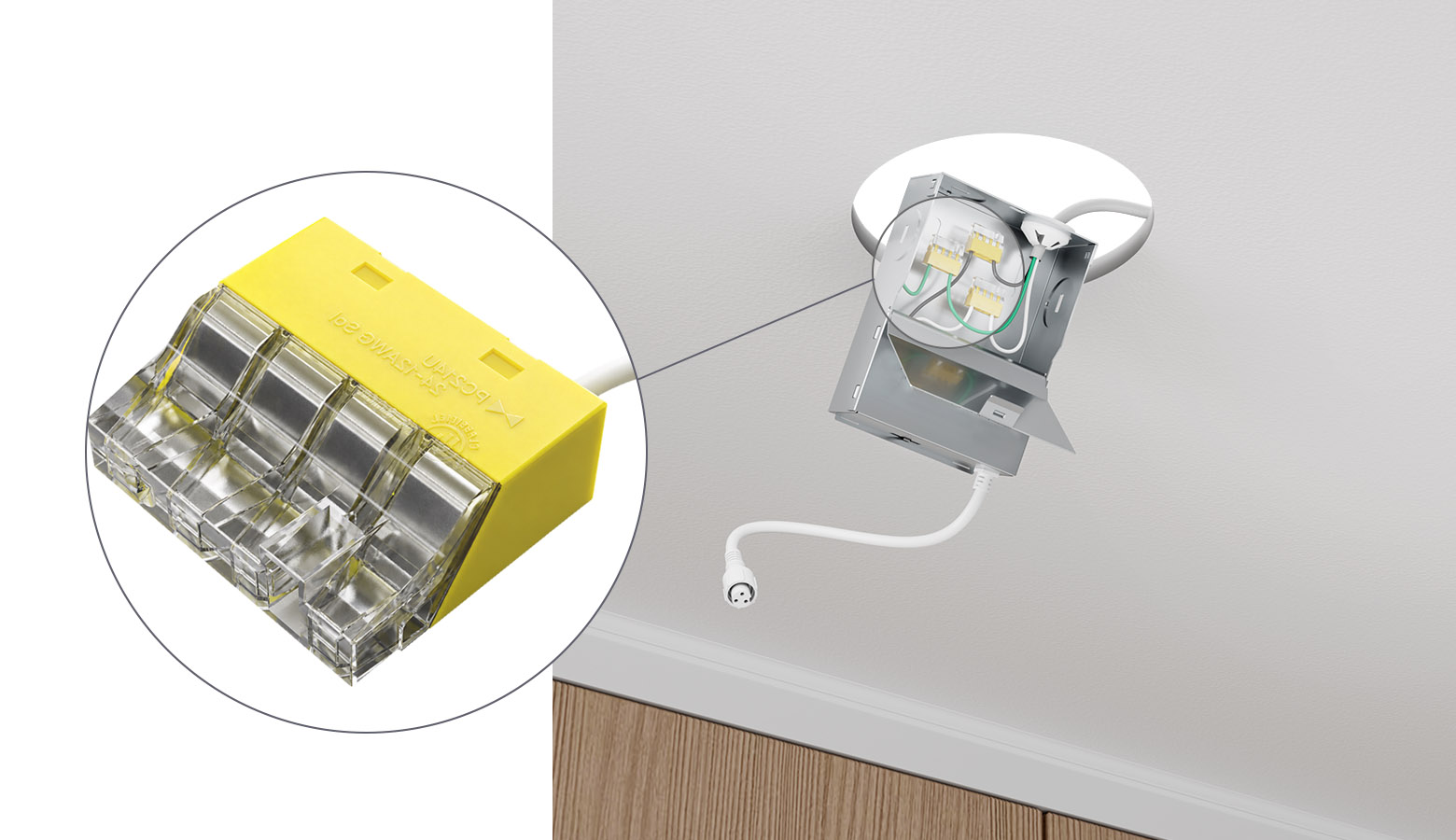

The pre-installed junction box features advanced quick-connect push wire nuts, enabling faster and more secure electrical connections without the need for additional wire connectors. This design streamlines the rough-in process, making it a preferred choice for large-scale B2B projects.

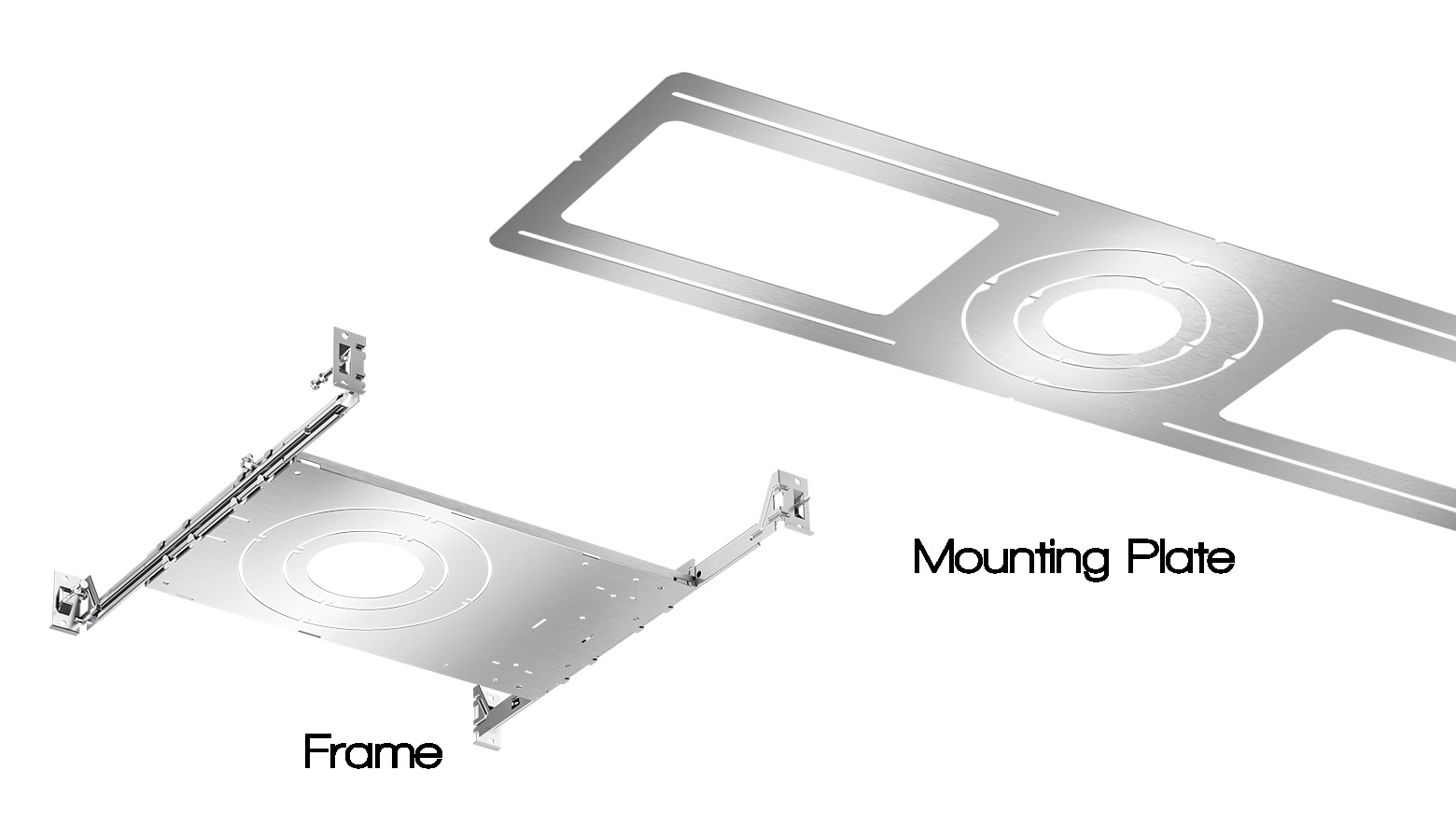

To support diverse installation requirements, this wafer light is fully compatible with our New Construction Mounting Plates and Hanger Bar Frames. These accessories provide stable positioning and support during the framing stage of new construction projects.
Installation Instructions
1. Make sure the power is turned off at the source to the recessedhousing(s) where the fixture(s) will be installed. Remove existing trimand CFL or incandescent bulbs.
2. Plug the female connector of the retrofit-kit into the male connector of housing assembly. (Fig. 2). If you used E26 socket,please screw E26 socket adapter into socket in housing. (Fig. 1)

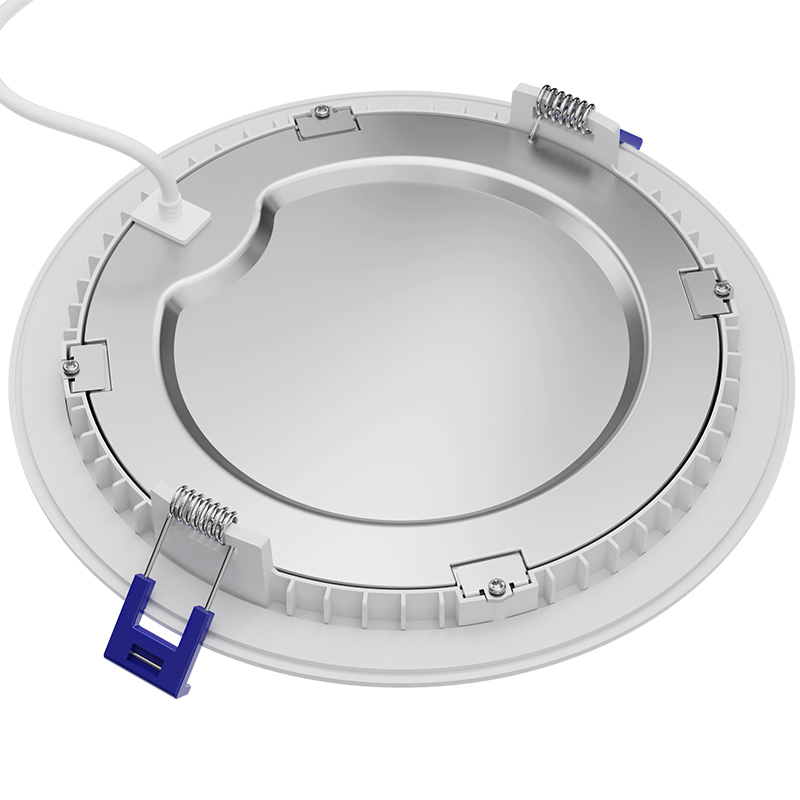

3. Squeeze the torsion springs together as shown and install intotorsion spring brackets inside the housing. (Fig. 4)
4. Tuck all wire into the housing and carefully push the RETROFIT TRIMup flush to ceiling surface.
A：Yes, it is Wet Location rated and ETL certified for damp or wet environments.
A：Yes, the 5CCT switch is located on the junction box for easy selection during installation.
A：No, the canless wafer design allows for direct installation into the ceiling with the included junction box.
